A cabinet can look perfectly straightforward on the floor and still cause trouble once it reaches the wall. A back panel fitted out of square, a cam connector left loose or a base installed the wrong way round can turn a quick kitchen fit into wasted time. Knowing how to assemble quick fit cabinets properly means slowing down for the checks that protect the speed, strength and finished appearance of the installation.
Quick-fit cabinet systems are designed to reduce assembly time while delivering a rigid, dependable carcass. They suit experienced fitters working to a programme and confident homeowners completing a kitchen renovation, provided every unit is built on a clean, level surface and checked before it is installed.
Prepare the area before opening the packs
Start by moving all cabinet boxes into the room where they will be assembled, but keep them off a damp floor and away from high-traffic routes. Check the labels against your kitchen plan before opening anything. It is far easier to spot a missing wall cabinet, a left-hand end panel or the wrong cabinet width now than after several units have been built.
Lay down cardboard, dust sheets or a clean blanket to protect cabinet panels and finished edges. Even durable cabinet finishes can chip when dragged across concrete or when hardware is placed directly on them. Keep the instruction sheet with each cabinet rather than relying on memory, as construction details can vary between base, wall, tall and drawer units.
Before beginning, make sure you have a tape measure, pencil, spirit level, combination square, screwdriver or drill-driver with torque control, rubber mallet and a suitable bit set. Do not overtighten fittings with a high-powered drill-driver. Quick-fit connectors are efficient, but excessive force can damage the fixing or pull it through the panel.
Check the components and identify the cabinet orientation
Open one cabinet at a time and place its components in logical order. You should be able to identify the two sides, base, top or rails, back panel, adjustable legs, fittings and any brackets before assembly starts. This small discipline is particularly valuable where several similar cabinets are being assembled in one day.
Pay attention to pre-drilled holes, finished edges and grooves for the back panel. The finished front edges face the room, while the recessed grooves and service voids generally face the wall. On base cabinets, the side panels often include leg-fixing positions and holes for drawer runners or hinge plates. On wall cabinets, look for the hanging bracket locations before committing to the build.
If a panel seems not to fit, stop rather than forcing it. The most common cause is a side panel being reversed or a cabinet base being positioned incorrectly. Forcing a connection may split the board or leave a fitting that cannot be tightened correctly.
How to assemble quick fit cabinets step by step
Fit the connectors and joining dowels first
Most quick-fit cabinets use a combination of dowels, cam-and-bolt connectors, locking clips or similar factory-prepared fittings. Insert each fitting into its designated hole exactly as shown in the manufacturer’s instructions. Cam locks normally need to be oriented so their opening faces the connecting bolt. If turned the wrong way, they may appear to engage but will not pull the joint tight.
Avoid mixing loose fittings between cabinets. Keeping each set together reduces the risk of using the wrong screw length, especially when you are assembling cabinets with drawers, pull-out storage or different internal configurations.

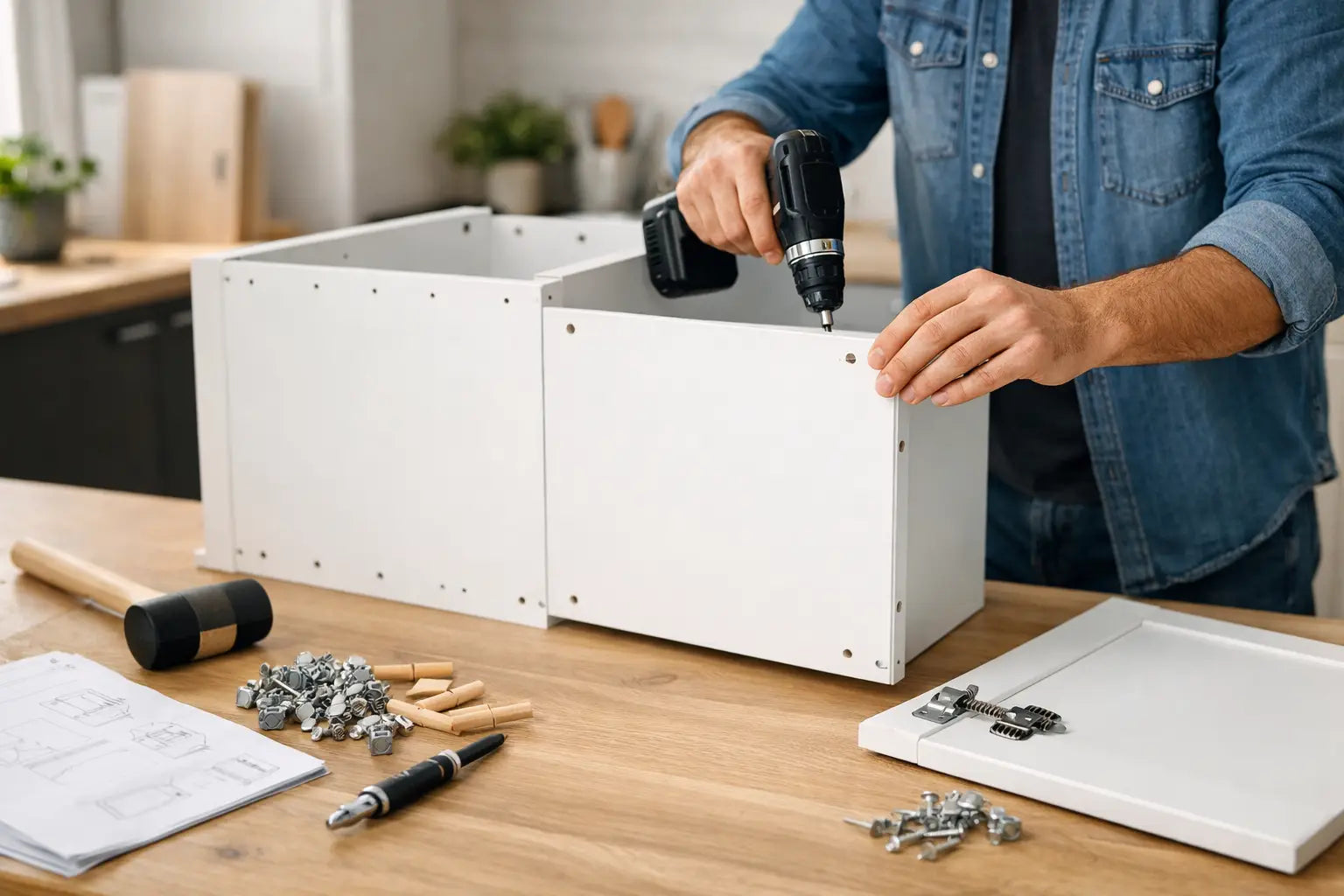

Build the carcass on a flat surface
With the side panels laid carefully on the protected floor, join the base and top rails or top panel as specified. Bring the pieces together evenly, supporting the panel close to the joint rather than pushing from the far end. A rubber mallet can help seat dowels, but use light, controlled taps and never strike a finished edge directly.
Once the main structure is connected, tighten the locking fittings firmly by hand or using a low-torque driver. The aim is a close, rigid joint, not maximum resistance. Check that the front edges remain flush. A proud edge at this stage can affect door alignment later.
For a run of base units, it can be tempting to assemble every carcass as quickly as possible and deal with problems during fitting. It is usually more efficient to complete and inspect one unit before moving to the next. A repeated orientation error can otherwise affect the entire order.
Square the cabinet before fixing the back
The back panel does more than close the cabinet. When fitted correctly, it holds the carcass square. Measure diagonally from one corner to the opposite corner, then compare it with the other diagonal. If the measurements match, or are very close, the cabinet is square. Adjust the carcass gently until they do.
Slide the back panel into its grooves or position it according to the system supplied. Check that it sits fully home along every edge before securing it. Fix gradually around the panel rather than fastening one corner tightly first, as this can pull the cabinet out of square.
This is one of the most valuable checks in the whole process. An unsquared cabinet may create uneven gaps between doors, misaligned drawer fronts and difficulty joining units neatly along a wall.
Add legs, brackets and internal hardware
Turn a base cabinet upright with assistance if it is wide or fitted with heavy components. Attach the adjustable legs in their marked positions, making sure each leg is seated securely. Do not rely on the legs alone to correct a badly assembled carcass. They are for levelling the installed cabinet, not compensating for a twisted unit.
Fit wall cabinet hanging brackets only after confirming the cabinet is square and the brackets are handed correctly. For drawer cabinets, install runners at the identical height on both sides and ensure they are level. A runner fitted just one hole out can cause a drawer to sit unevenly or fail to close smoothly.
Keep doors, drawer boxes, handles and decorative panels protected until the cabinet run is fixed in place. They are easier to align once the cabinets have been levelled, secured and joined together.
Checks to make before installation
A completed cabinet should feel rigid when you press lightly across the corners. Examine the front edges for flush joints, confirm the back is fully seated and make sure every connector has been tightened. Remove any packaging fragments from inside the cabinet, particularly around runner positions and corner joints.
For base cabinets, check that all legs touch the floor when the unit is placed upright. For wall cabinets, confirm that the rear hanging points are clear and accessible. Mark each cabinet discreetly if it is part of a planned run, such as sink base, drawer base or tall housing. This prevents expensive mistakes when several similar units are moved into position.
The cabinet installation itself needs a separate set of checks: locate sound fixing points, account for wall construction, level the first cabinet carefully and join adjacent units only once their fronts are aligned. Quick-fit construction saves time in assembly, but it does not remove the need for secure wall fixings or accurate setting out.
Common assembly mistakes that slow down a kitchen fit
The fastest way to lose time is to treat every cabinet as identical. Tall housings, sink units and drawer cabinets can have important differences in rails, service spaces and hardware positions. Work from the specific instructions for each unit, even if the carcasses look similar.
Another frequent issue is fitting the back panel without checking diagonals. The unit may still stand up, but doors and drawers will expose the problem immediately. Equally, overtightening cams or screws can cause damage that is difficult to hide once the cabinet is installed.
Finally, do not fit doors before the cabinet run has been levelled and fixed together unless the instructions specifically require it. Door adjustment is a finishing task. Leaving it until the carcasses are stable gives you cleaner reveals and a more professional result.
When expert support is worth having
Straightforward base and wall units are within reach of many capable DIY installers, but a kitchen becomes more technical around tall appliance housings, uneven floors, service voids, integrated lighting and worktop preparation. The same applies if walls are masonry, studwork or of uncertain construction, as the correct fixing method matters as much as cabinet assembly.
Aspin Collins supplies premium kitchen components alongside practical product guidance, helping homeowners and trade customers choose cabinet, door, drawer and hardware combinations that work together. Where a project has bespoke requirements or needs professional installation support across Manchester, Greater Manchester or Cheshire, getting advice before the cabinets are built can prevent a costly change later.
Build each cabinet carefully, check it is square and protect the visible finishes as you work. Those few extra minutes at the assembly stage are what allow the finished kitchen to look precise, operate smoothly and stay dependable through everyday use.
