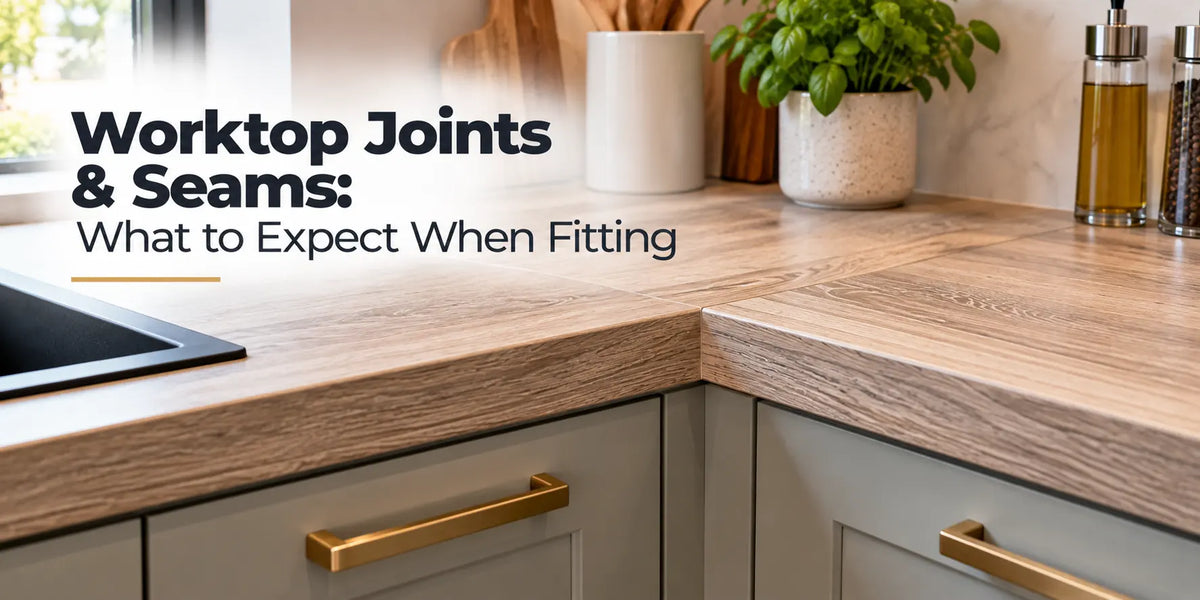

Worktop Joints Explained: Why Most Kitchens Need Them
Laminate worktops are made in fixed lengths, usually 3050mm or 4100mm, so unless your kitchen is one short run, the worktop will need joining somewhere. An L-shaped kitchen needs at least one joint at the corner, a U-shaped kitchen usually needs two, and a long wall can need a joint part way along. Worktop joints are a normal part of every fitted kitchen, and knowing how they are made, where they should sit and what a good one looks like helps you plan the layout and judge the finished job with confidence.
If you are fitting the whole worktop yourself, our step-by-step guide on how to install kitchen worktops covers measuring, cutting and fixing. This article goes deeper into the joints themselves.
Types of Worktop Joints
There are three main types of worktop joints for laminate worktops:
- Mason's mitre: the neatest corner joint, used on postformed and square edge worktops.
- Butt joint: a straight joint for square edge corners and straight runs.
- Jointing strip: a metal profile that covers the join, ideal for quick DIY fitting.
A mason's mitre is what most fitters mean by a professional corner. One worktop gets a shaped female cut and the other a matching male cut, so the front edge turns the corner in one smooth line. Because of its shape it is sometimes called a hockey stick joint.
A worktop butt joint is simpler: the cut end of one worktop meets the flat edge of the other. It is quick to make and very strong once bolted, but it only looks right where both meeting faces are flat.
A worktop jointing strip is an aluminium profile that sits between two worktops and covers the join. Strips are made to suit the thickness and edge shape of the worktop, with corner, straight and end versions. They need no router, but the strip stays visible on the surface.
How to Join Worktops at a Corner
Learning how to join worktops starts with the corner, because that is where most kitchens need a joint. For a worktop corner joint on a postformed top, the rounded front edge means a simple butt leaves a gap and an untidy step, so a mason's mitre or a corner strip is the right choice.
Cutting a mason's mitre needs a heavy-duty half-inch router of around 1,800W, a 12.7mm cutter, a 30mm guide bush and a worktop jig. The jig is a large template with pegs that positions the router for each cut, so the male and female shapes match exactly. Fitters cut the female side first, then the male, then rout the bolt recesses underneath. Walls are rarely perfectly square, so a good fitter checks the corner angle first and adjusts the jig or scribes the back edge to suit.
A square edge worktop joint at a corner can be a straight butt, with the cut end of one top meeting the factory front edge of the other. Many fitters still prefer a mitre on square edge tops for the crispest corner.
Joining Worktops in a Straight Line
A worktop straight joint joins two lengths end to end along one wall. Both ends are cut square, so the joint works on postformed and square edge tops alike. Choosing longer worktops is the easiest way to avoid one: a 4100mm length covers many runs that would need a joint with 3050mm tops, so it is worth measuring before you order from our kitchen worktops collection.
What Holds Kitchen Worktop Joints Together
Glue alone will not hold a joint. Kitchen worktop joints are pulled tight from underneath with worktop bolts, which sit in dog-bone shaped recesses routed into the underside of both pieces. Tightening them draws the faces together and holds the surfaces level.
Three bolts per joint is typical on a standard 600mm deep worktop, which is why our worktop bolts come in packs of three. Zip bolts tighten with a screwdriver, which helps where space under the worktop is tight. Some fitters also add biscuits along the joint so the two surfaces stay perfectly flush as the bolts are tightened.
Before the bolts go tight, the cut faces are coated with a colour-matched worktop jointing compound or a sealant, so water cannot reach the chipboard core. Our EGGERseal guide explains how to seal joints and cut edges properly.
Where a Joint Should and Should Not Go
Placing the joint well is as important as cutting it well:
- Not near the sink: water is the main enemy of a laminate joint, so keep it well clear of the sink and draining area.
- Never over a dishwasher: there is no cabinet underneath to support it, and the steam that escapes when the door opens attacks the joint.
- Not through a hob cut-out: a joint running into the opening weakens the worktop.
- Always over a unit: a joint should sit on a cabinet side so it cannot flex.
What a Good Laminate Worktop Joint Looks Like
Even a perfect joint is not invisible, so it helps to know what is normal. A well-made laminate worktop joint should show:
- A fine, even line across the surface, with no gap that catches a fingernail.
- A level surface, with no step when you run a finger across it.
- A pattern change, because stone and marble effects do not continue across a joint.
- A change in grain direction at a corner on wood effect tops, just as on real timber.
Plain light colours and busy patterns hide joints best, while dark, solid colours can make the line a little more visible. Square edge tops give a crisp line, while the front of a postformed mitre shows a small curved seam. Our guide to worktop edge profiles explains how each edge looks.
Signs of Bad Worktop Joints
Knowing the signs of bad worktop joints lets you raise them with your fitter before they become a problem:
- A visible gap wide enough to hold crumbs and water.
- A step or lip, where one worktop sits higher than the other.
- Lifting or swelling, often called a blown joint, where water has reached the chipboard core.
- Chipped laminate along the cut edge or front profile.
Most of these come from a rushed cut, bolts that were never fully tightened, units that are not level, or a joint that was left unsealed.
Frequently Asked Questions
1. What is a kitchen worktop joint called?
At a corner it is usually a mason's mitre, sometimes called a hockey stick joint. A straight joint between two cut ends, or a corner without a mitre, is called a butt joint.
2. Can I join worktops without a jig?
Yes. Knowing how to join worktops without a jig mostly means using a jointing strip, or a butt joint on square edge tops. A mason's mitre, however, needs a router and worktop jig.
3. What do you put between worktop joints?
A colour-matched jointing compound or a waterproof sealant on the cut faces, with worktop bolts underneath to pull the joint tight. Glue alone will not hold or protect it.
4. How do you hide seams in laminate worktops?
Cut the joint accurately, fill it with a colour-matched compound, and place it where it is less noticeable, such as an inside corner. Patterned decors also disguise the line well.
5. Can a lifted or swollen worktop joint be repaired?
A small gap can often be refilled with compound. Swollen chipboard cannot be reversed, though, so a blown joint usually means re-cutting or replacing the worktop.
6. How do you connect two worktops together in a straight line?
Cut both ends square, seal them, then pull them together with worktop bolts over a supporting unit. A straight connecting strip is the simpler alternative for DIY.
